Overlap Gaskets

  • Gaskets for windows

    Primo is your experienced expert in all areas from design through tool making to extrusion.

    Let's get in touch
Standardised Overlap Gasket for Windows

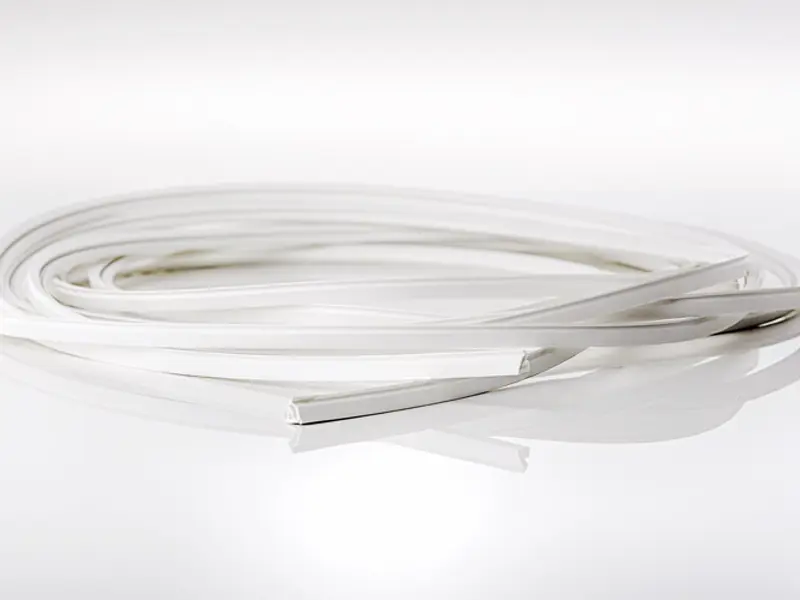

Primo's Overlap Gaskets

Overlap gaskets keep your windows protected. These gaskets are specially designed to maximize security by carefully sealing gaps and joints in window frames, creating resistance against drafts, moisture, and external elements which, in turn, create a more comfortable and energy-efficient living environment. Transform your windows into an insulated haven with overlap gaskets, keeping the cold drafts out and creating a comfortable atmosphere inside your home.

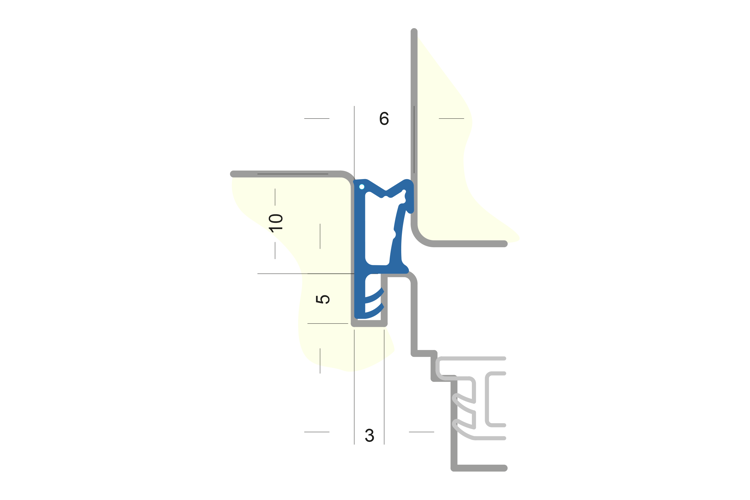

Foam overlap gasket ASF-6473-H

Foam overlap gasket ASF-6473-H

PRODUCT ID ASF-6473-H


Overlap gasket, foamed with cord for notching. For rebate height 10mm, groove width 3mm Material: TPE/foam.

Available colors:

White - RAL 9003 Grey - RAL 7040 Anthracite - RAL 7043

Specifications

Material PRIMO AS
Stop clearance 6 mm
Groove width 3 mm
Groove depth 5 mm
Rabbet height 10 mm
Packaging 240 m per carton (1x240 m reel)
Let's work together

Foam overlap gasket ASF-0320-H

PRODUCT ID ASF-0320-H


Wing rebate gasket with cord for notching. For rebate height 12mm, groove width 5mm Material: TPE

Available colors:

White - RAL 9003 Beige - RAL 1001 Brown - RAL 8002 Rustic - RAL 8014 Anthracite - RAL 7043 Black - RAL 9004

Specifications

Material PRIMO AS
Stop clearance 6 mm
Groove width 3 mm
Groove depth 5 mm
Rabbet height 2,5 mm
Packaging  400 m per carton (2x200 m reel)
Let's work together
Foam overlap gasket ASF-0320-H

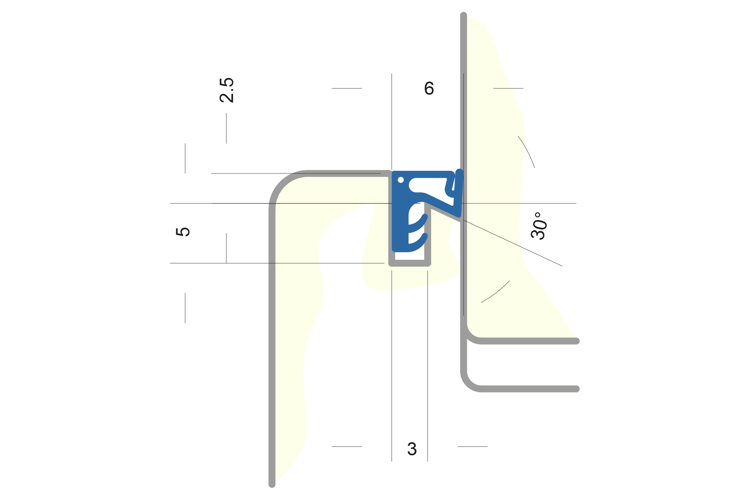

Overlap gasket ACF-6020

Overlap gasket ACF-6020

PRODUCT ID ACF-6020


Overlap gasket with cord, assembled without notching. For rebate height 2.5mm, groove width 3mm Material: TPE

Available colors:

White - RAL 9003 Beige - RAL 1001 Brown - RAL 8002 Rustic - RAL 8014 Anthracite - RAL 7043 Black - RAL 9004

Specifications

Material PRIMO AC
Stop clearance 6 mm
Groove width 3 mm
Groove depth 5 mm
Rabbet height 2.5 mm
Packaging 01 400 m per carton (2x200 m disc)
Packaging 02 150 m per carton (1x150 m reel)
Let's work together

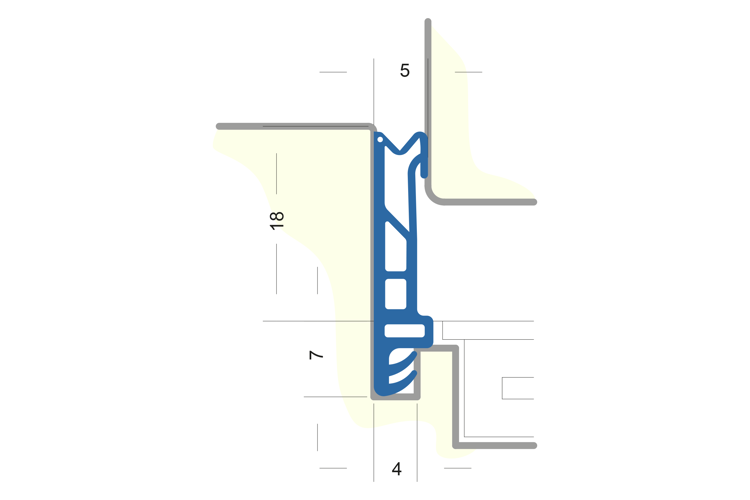

Overlap gasket ACF-5955

PRODUCT ID ACF-5955


Overlap gasket with cord for notching. For rebate height 18mm, groove width 4mm Material: TPE

Available colors:

White - RAL 9003 Black - RAL 9004

Specifications

Material PRIMO AC
Stop clearance 5 mm
Groove width 4 mm
Groove depth 7 mm
Rabbet height 18 mm
Packaging  140 m per carton (7x20 m disc)
Let's work together
Overlap Gasket ACF 5955
Overlap gasket ACF-5955

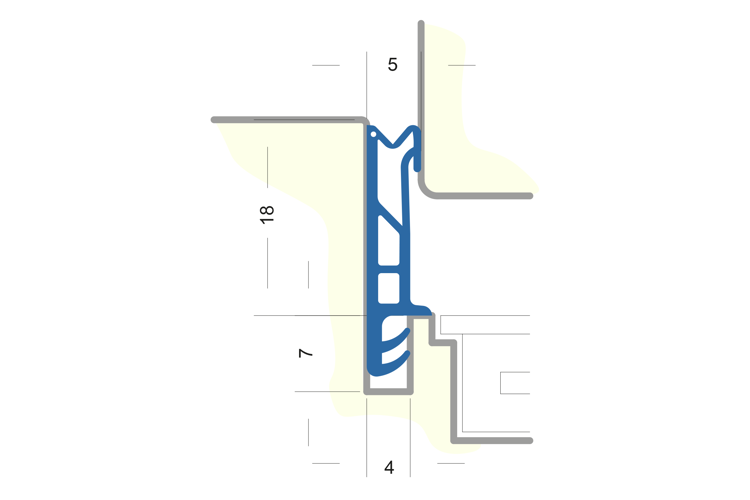

Overlap gasket ACF-5855

PRODUCT ID ACF-5855


Overlap gasket with cord for notching. For rebate height 18mm, groove width 4mm Material: TPE

Available colors:

White - RAL 9003 Grey - RAL 7040 Beige - RAL 1001 Brown - RAL 8002 Rustic - RAL 8014 Black - RAL 9004

Specifications

Material PRIMO AC
Stop clearance 5 mm
Groove width 4 mm
Groove depth 7 mm
Rabbet height 18 mm
Packaging  160 m per carton (8x20 m disc)
Let's work together
Overlap gasket ACF-5855
Overlap gasket ACF-5855

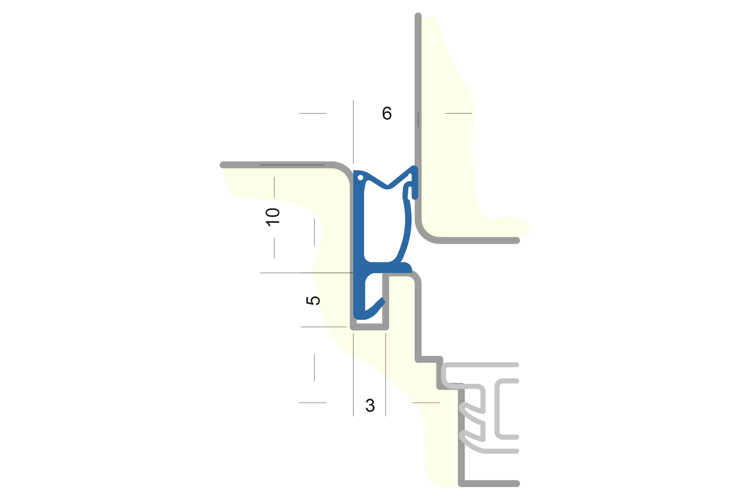

Overlap gasket ACF-5473-H

Overlap gasket ACF-5473-H

PRODUCT ID ACF 5473-H


Overlap gasket with cord for notching. For rebate height 10mm, groove width 3mm Material: TPE

Available colors:

White - RAL 9003 Grey - RAL 7040 Beige - RAL 1001 Brown - RAL 8002 Rustic - RAL 8014 Anthracite - RAL 7043 Black - RAL 9004

Specifications

Material PRIMO AC
Stop clearance 6 mm
Groove width 3 mm
Groove depth 5 mm
Rabbet height 10 mm
Packaging  240 m per carton (1x240 m reel)
Let's work together

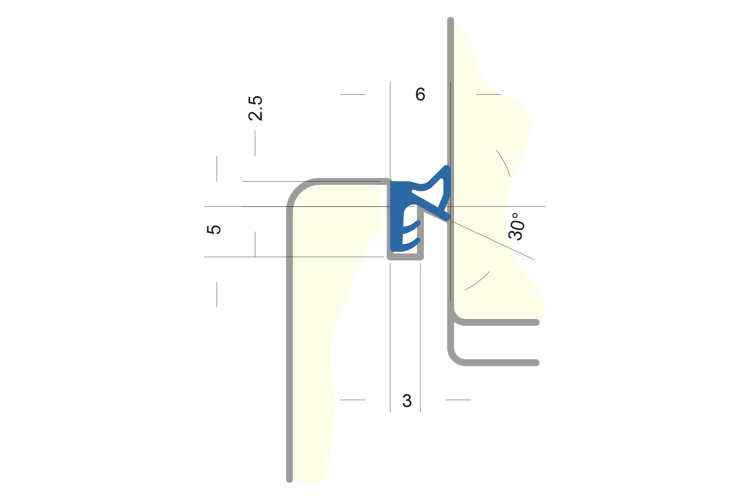

Overlap gasket AC-5019

PRODUCT ID AC-5019


Overlap gasket without cord. For rebate height 2.5mm, groove width 3mm Material: TPE

Available colors:

White - RAL 9003 Grey - RAL 7040 Beige - RAL 1001 Brown - RAL 8002 Mahogany - RAL 8016 Rustic - RAL 8014 Anthracite - RAL 7043 Black - RAL 9004

Specifications

Material PRIMO AC
Stop clearance 6 mm
Groove width 3 mm
Groove depth 5 mm
Class W26242
Rabbet height 2.5 mm
Packaging 01 200 m per carton (4x50 m bundle)
Packaging 02 400 m per carton (2x200 m reel)
Let's work together
Overlap gasket AC-5019
